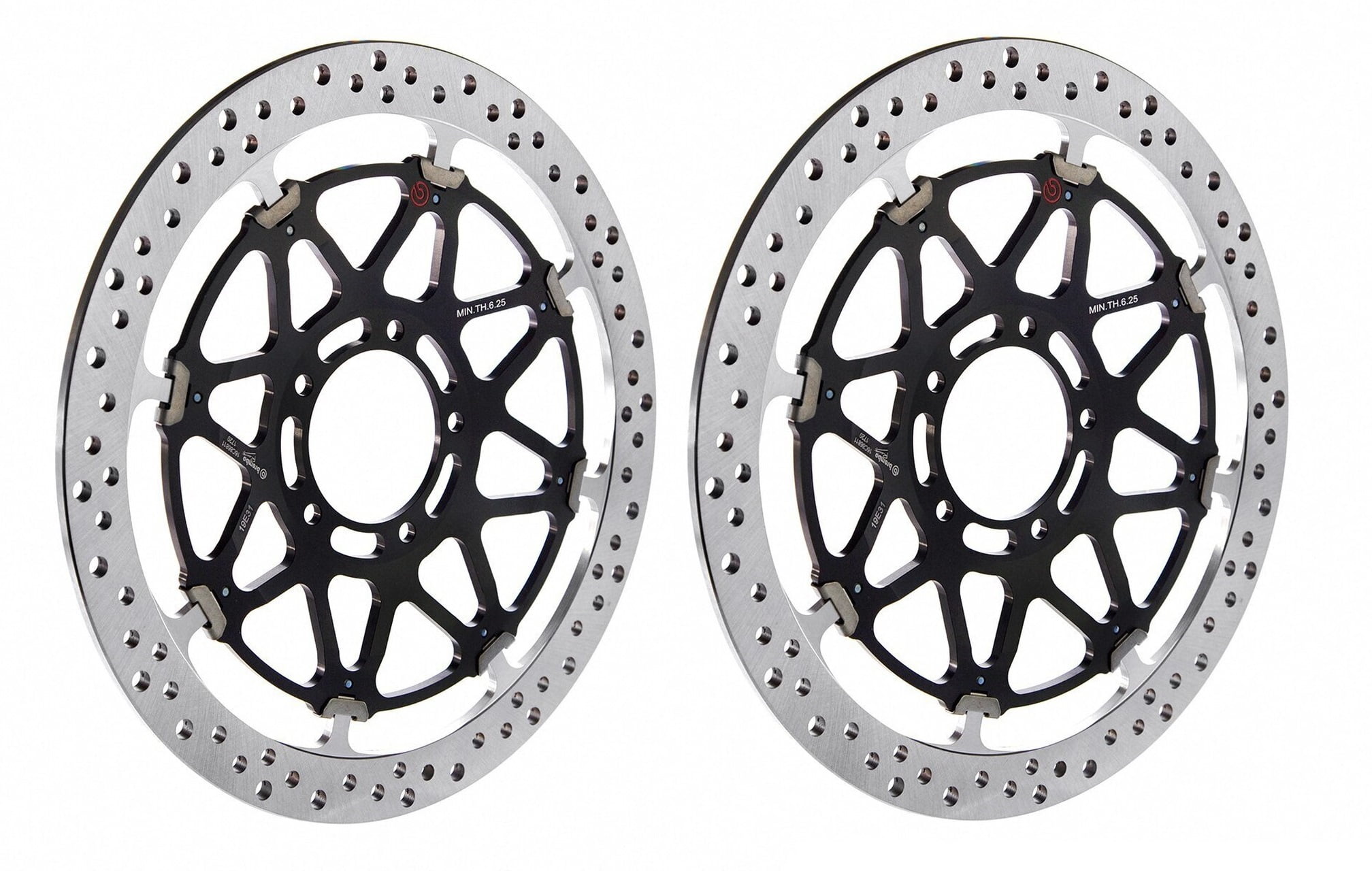

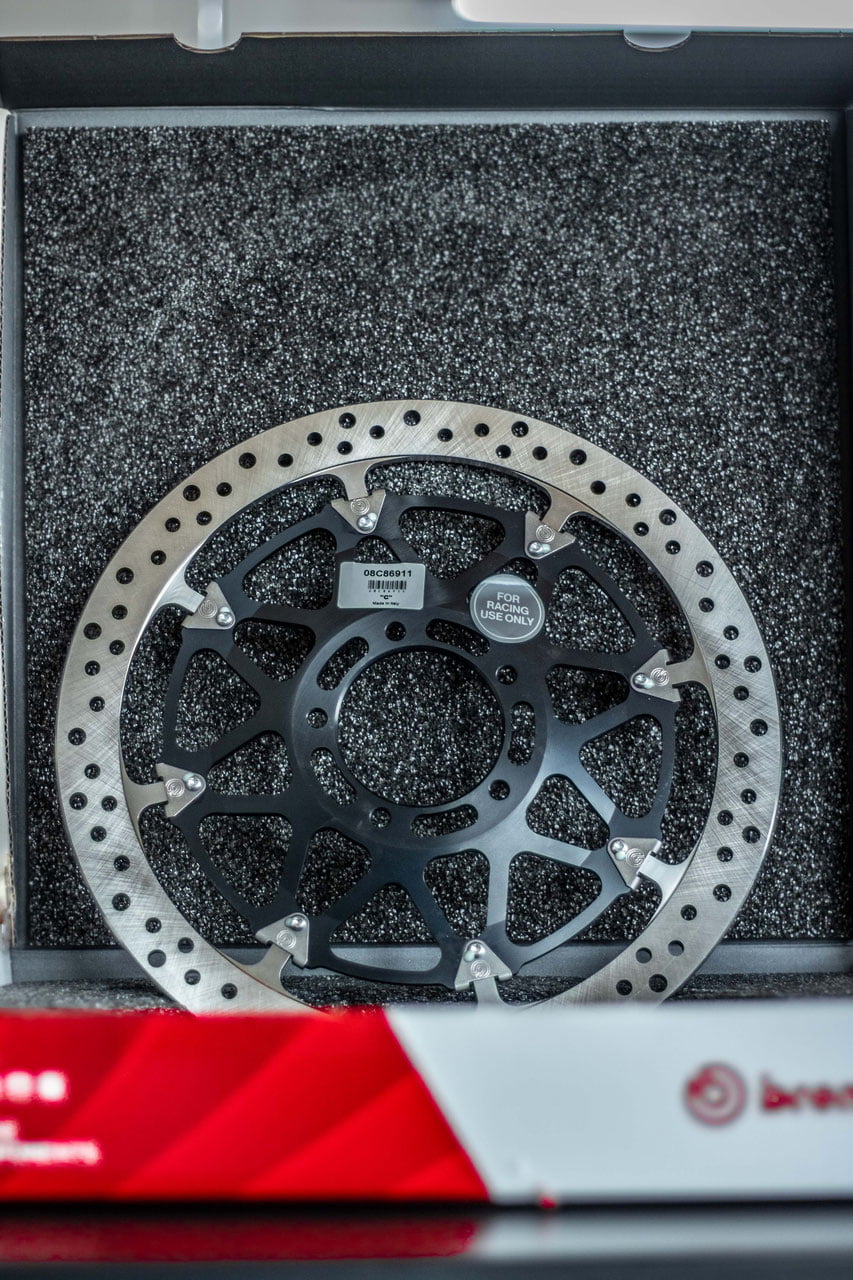

BREMBO – RACING PISTABASSA WSBK FRONT DISCS 320MM 6.7MM THICK

The PistaBassa disc was developed based on the experience gained in MotoGP and Superbike, with a T-Drive fixing system, allowing for a significant weight reduction and improved braking torque. Moreover, the PistaBassa has a full floating disc, which allows for resistance to high-temperature distortion. The 30mm high and 6,75mm thick braking surface width makes them compatible with all Brembo Racing calipers. Their fixings and offset are the same as per the original discs, therefore no modification of the original wheel and forks is required. The braking surface is made from heat-treated steel capable of withstanding extreme thermo-mechanical stress. These are the same specifications as used in WSBK and BSB.

Technical Characteristics

• Mounting- As the original
• Rotor height- 30 mm
• Rotor thickness- 6.75 mm
• Rotor material- Stainless steel
• Bell material- Aluminium alloy
• Connection number- 8

These discs are for race use only and must be paired with racing calipers designed for narrow-band rotors.
Not compatible with some Ducati Traction control systems, please see below the list of none compatible models.
